The Lian Li A3mATX Wood Edition is a compact case that stands out with its minimalist design and wooden aesthetic.

One of its key features is the adjustable mounting height for the power supply, offering flexibility for various build configurations.

For better cable management, I used the Thermaltake Toughpower SFX 1000W Gold PSU in the SFXL form factor.

However, the CPU cable was too short, so an extension was necessary.

While SFX power supplies are great for optimizing space, it’s important to doublecheck cable lengths before starting the build.

The combination of the Noctua NHU12A chromax.black cooler and Lian Li Uni Fan P28 fans worked seamlessly.

Paired with the AMD Ryzen 7 9700X, which doesn’t generate excessive heat, I set the fan speeds to lower levels for quieter operation.

With the TDP capped at 105W, gaming temperatures remained stable, and benchmark tests showed CPU temperatures averaging around 85C.

For easier assembly, it’s best to install the air cooler along with the motherboard.

I attached the cooler last for filming purposes, which made it challenging to install the fans due to the proximity of the graphics card and topmounted fans.

For memory and storage, I used products from KLEVV, which provided reliable performance with manageable temperatures.

The 6400 CL32 memory was easily configured using the EXPO profile, although I didn’t test 1:1 operation.

Chapters

00:00 Intro

00:49 Motherboard Assembly

01:46 A3mATX Wood Overview

02:33 A3mATX Wood Assembly

05:30 Cinematic Showcase

06:58 Fan Setup & Thermals

Main Parts

Case Lian Li A3mATX Wood Edition

CPU AMD Ryzen 7 9700X

GPU AMD Radeon RX 7800 XT Reference Card

Motherboard Gigabyte B650M Aorus Elite

RAM Klevv DDR56400 CL32 CRAS V RGB

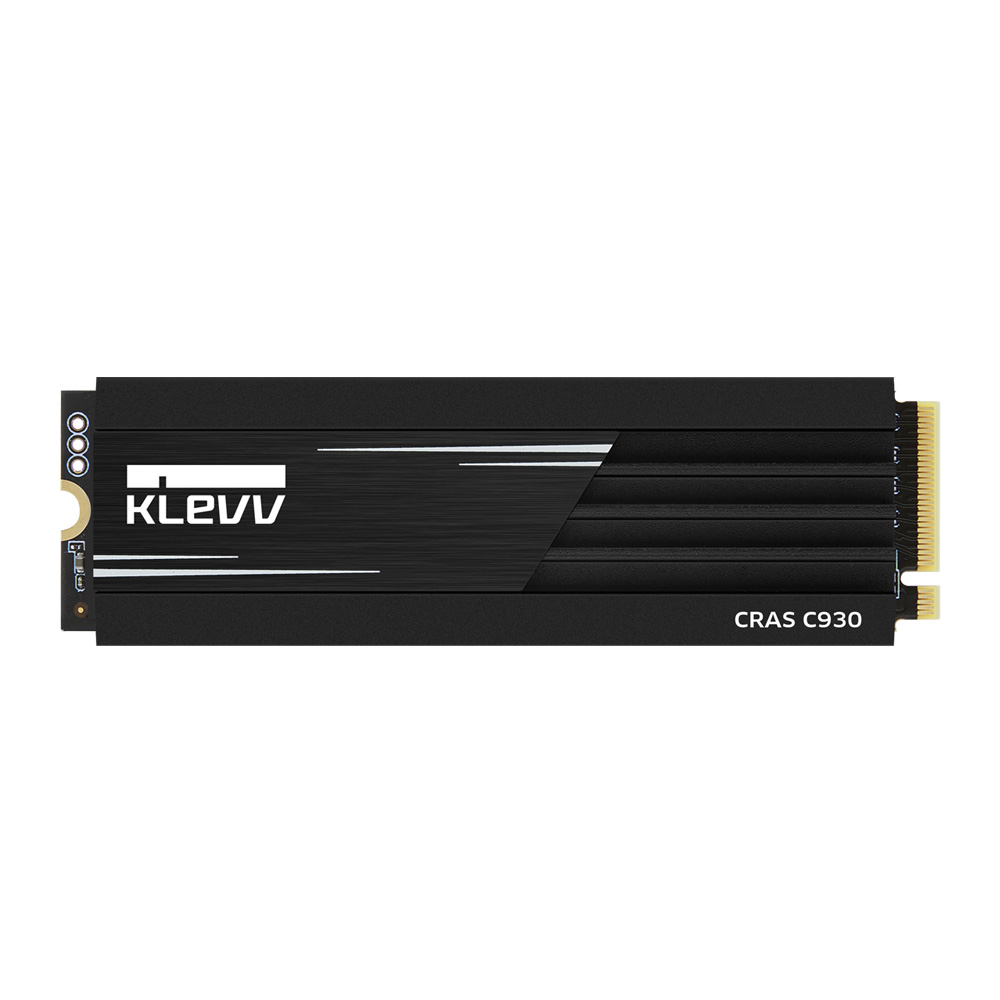

Storage Klevv CRAS C930 2TB M.2 2280 NVMe

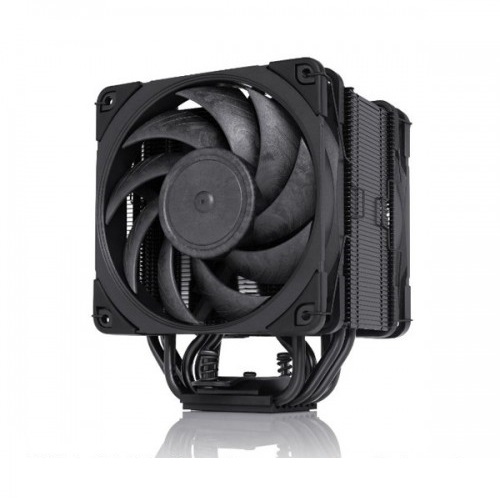

CPU Cooler Noctua NHU12A chromax.black

Case Fan 2x Lian Li Uni Fan P28 3Pack

PSU Thermaltake Toughpower SFX 1000W Gold

The total cost, excluding the graphics card, is approximately 1100 USD.

Specs

Lian Li A3mATX Wood Edition

Noctua NHU12A chromax.black

Klevv DDR56400 CL32 CRAS V RGB

Klevv CRAS C930 2TB M.2 2280 NVMe

Video Editing: DaVinci Resolve 19 (Ryzen 9950X + RTX 4080 Super)
